HF Station Setup

Transceiver​

  • Model: Yaesu FT-710 Field
  • Power Output: 100W
  • Features:
    • Built-in antenna tuner
    • USB audio interface
    • CAT control

Antennas​

  • Buckmaster OCF Dipole (DX-OCF-HP)

    • Bands: 80m-6m
    • Power: 3000W PEP
    • Height: ~35ft

  • Chameleon MPAS 2.0 (Portable)

    • Bands: 40m-6m
    • Power: 100W PEP
    • Portable setup with tripod

Accessories​

  • Antenna Tuner: MAT-Y200
  • Power Supply: BTECH RPS-30PRO
  • Coax: KMR 400 (200ft)
  • Battery Backup: XZNY 12V 20Ah LiFePO4

Digital Modes​

  • WSJT-X for FT8, FT4, WSPR
  • JS8Call for digital QSOs
  • FLDigi for PSK31, RTTY

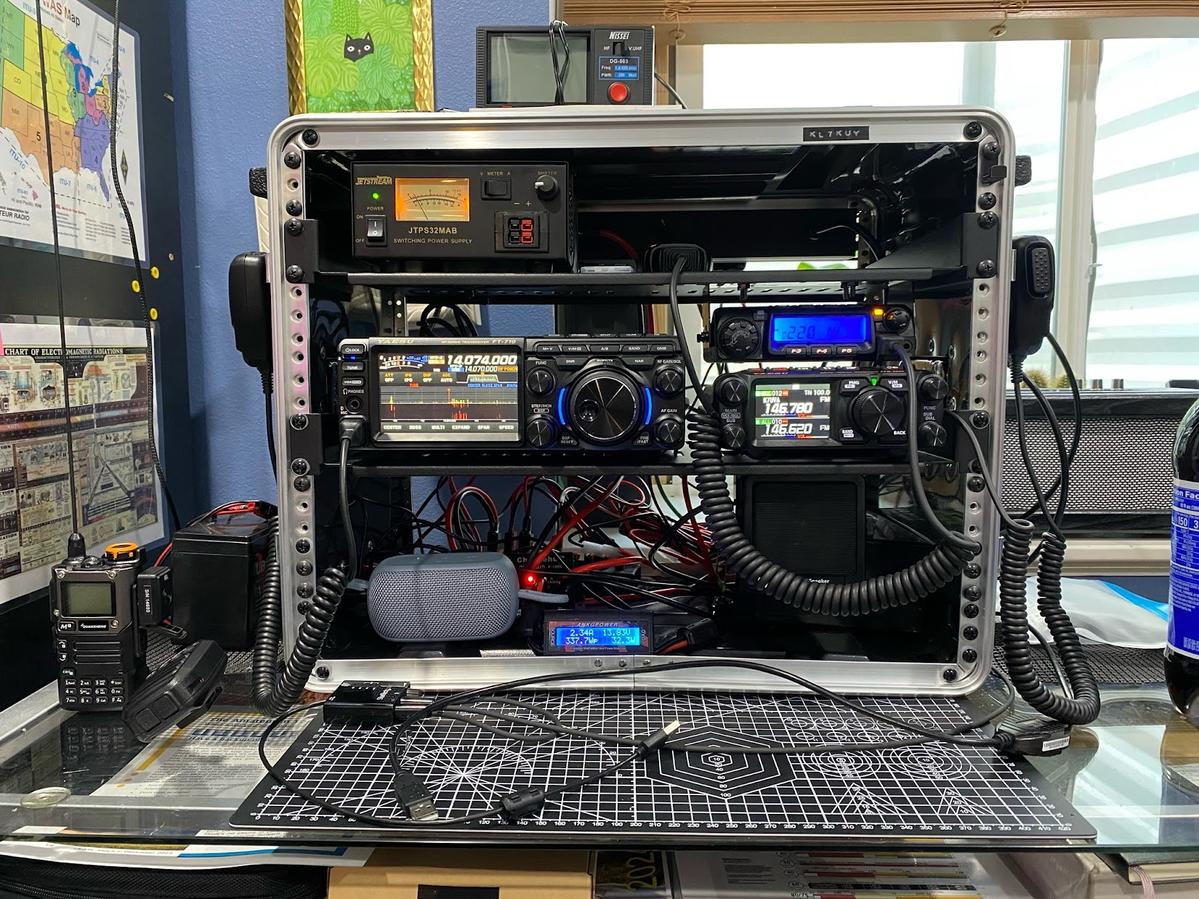

Station View​

My HF Station Setup
